Product classification
Amplifier
LNA Series (Low Noise Amplifier Modules): Ideal for weak sig···
Filter
FLT Series (Bandpass Filters): Filters unwanted frequencies,···
Bias-Tee
BT Series (Bias Tees): Combines DC power and RF signals, sui···
Attenuator
ATT Series (RF Attenuators): Adjusts signal amplitude precis···
Power Divider
PD Series (Power Dividers): Splits RF power into m···
Mixer
MIX Series (RF Mixers): Converts signal frequencie···
Limiter
LIM Series (RF Limiters): Protects sensitive compo···
Front-End Modules
FE Series (Integrated Front-End Modules): Combines···

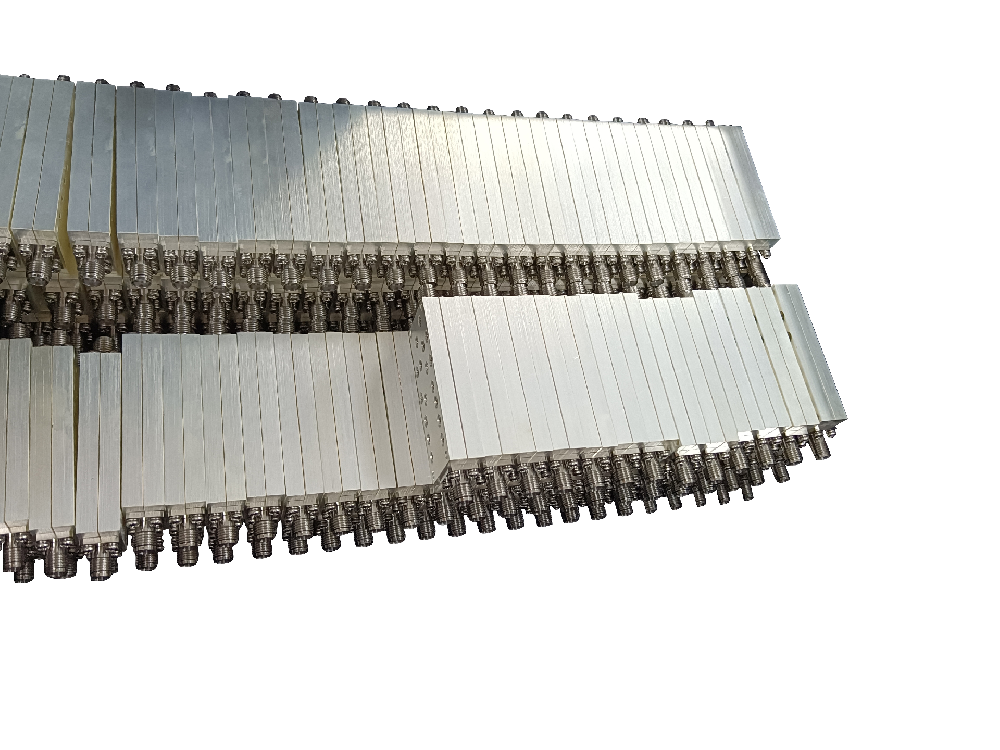

9-9.6GHz
Band Pass Filter
Bandpass filter is a filter used to solve the radiation interference.
• Frequency Range: 9-9.6GHz
• Insertion:0.7dB

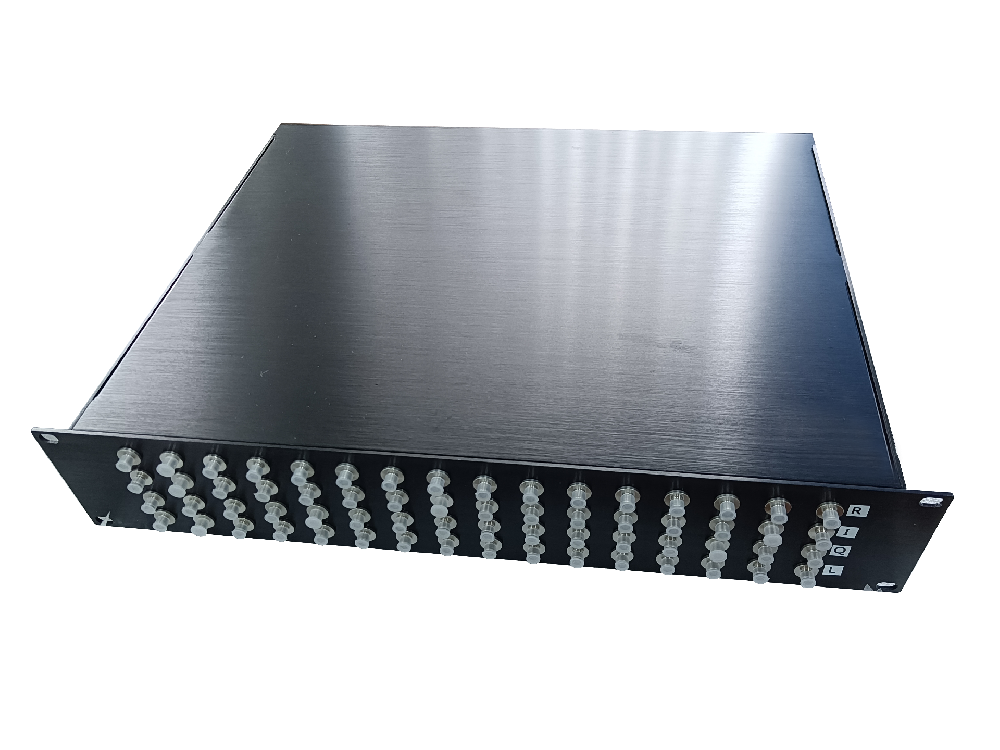

#64-channel
IQ modulator system integrated chassis
• Wideband RF & LO, 4GHz to 8.5GHz
• Wideband IF, DC to 3500 MHz
• Image Rejection, Typ. 25 dBc
• High LO-RF Isolation, Typ. 42 dB
• High Input IP3, Typ. +20 dBm
• Usable as Image Reject Mixer & SSB Converter
APPLICATIONS
• Test and Measurement Equipment
• Back Haul Radio
• Satellite Communications
• Radar, EW, and ECM Defense Systems
Note: If this product does not meet your requirements, you can contact us for consultation and to customize the corresponding RF and microwave devices.
