8-12G RF Power Amplifier
The LMWA39-40-0053G is a wideband RF power amplifier module designed for the 8-12 GHZ frequency range, offering a typical gain of 41dB and an output power of 32dBm. This module is equipped with SMA female connectors at both the input and output ports, featuring a compact mechanical design and reliable RF performance. Customization options are available for frequency range, gain, output power, package size and connector type to meet the specific requirements of particular customers.
Part Number:LMWA32-41-812G
Electrical Characteristics
| Frequency(GHz) | 8~12GHz |
| Gain(dB) | 41dB |
| Gain Flatness(dB) | ±1.5dB |
| VSWR | 2：1 |
| P1dB(dBm) | 30dBm |
| Pout（dBm） | 32dBm |
| Supply Votage | 8V |
| VCurrent Consumption | 650mA Small-signal 930mA Big-signal |
| Operation Temp. | -55~+85℃ |
| Input /Output Connector | SMA |
| Specification | Click to download the specification |

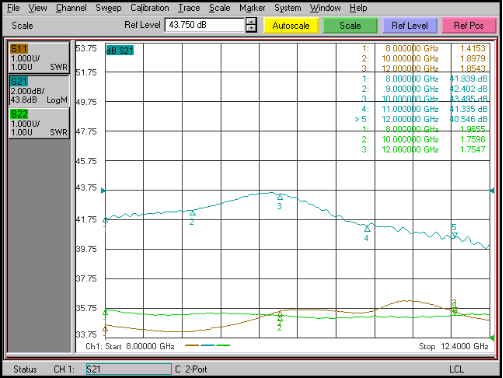

The Typecal test curve of S Parameter：
For more RF microwave power amplifiers, please continue to pay attention to LogicMW official website www.logicmicrowave.com, or contact us for custom rf microwave power amplifiers
