Broadband Limiter 2~18GHz
The LMWLT16-218G from LogicMW is a Coaxial Limiter that operates from 2 to 18 GHz. It can handle an input RF power of up to 20 W (CW) a VSWR of less than 1.8:1. This limiter has a leakage of less than +16 dBm . It has an insertion loss of less than 2.75 dB. This RoHS-compliant limiter has SMA female connectors.
Limiters protect sensitive RF front-ends by clamping large input signals or surges while inserting minimal loss during normal operation. They are rated by maximum input power, insertion loss and recovery time.
Electrical Characteristics
Part Number:LMWLT16-218G
| Frequency(GHz) | 2~18GHz |
| Limiting Power(dBm) | 16dBm |
| Insert. Loss(dB) | 2.75dB |
| VSWR | 1.66:1 TYP |
| Power(W) | 20W |
| Input /Output Connector | SMA |
| Specification | Click to download the specification |

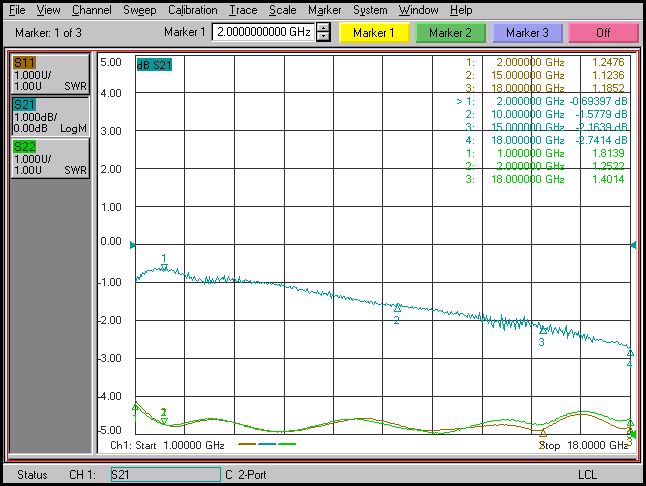

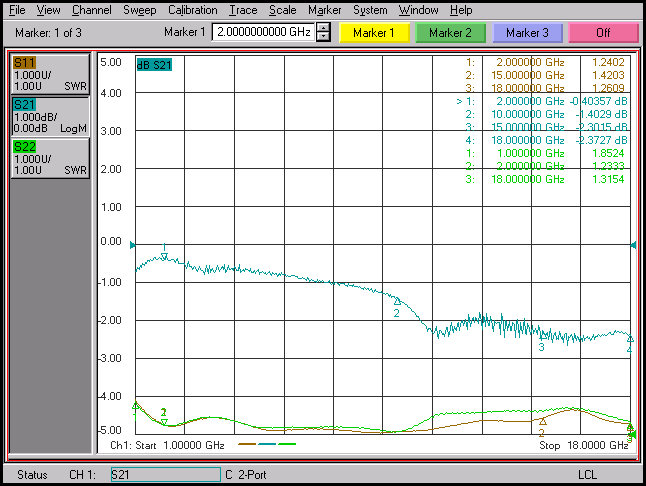

Typical Performance Data: cnctional Diagram tional Diagram
Fun
ctionFunct
ionFunctional Diagram al Diagram al Diagram
Functional Diagram
