Bias Tees 100MHz-15GHz
LMWBT100M15G is a RF choke that operates from 100 MHz to 15 GHz. The RF choke offers 0.5 dB insertion loss and 1.35 VSWR when the frequency is 0.1~6GHz.The RF choke offers 0.5 dB insertion loss and 1.35 VSWR when the frequency is 6~15GHz. The RF choke can handle up to +100VDC bias voltage and 500 mA current. The all ports are equipped with SMA female connectors
Features • Frequency range:100KHz-3GHz • Low Insertion Loss • High Voltage • High Current Capacity Application • Test Lab • Sub-assemblies • System Integrations |  |
Electrical Characteristics
Part Number：LMWBT100M15G
| Frequency(GHz) | 100MHz-15GHz |
| Isolation(dB) | 30~50dB @0.1~6GH 25~48Ghz @6-15Ghzz |
| Insert. Loss(dB) | 0.5dB @0.1~6GHz 0.8dB@6~15GHz |
| VSWR | 1.35:1 @0.1~6GH 1.75:1@6~15GHzz |
| Voltage(V) | 0-100V |
| Input /Output Connector | SMA |
| DC Connector | SMA |
| Specification | Click to download the specification |

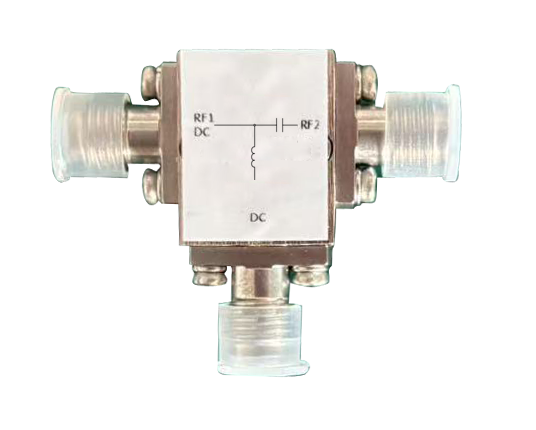

Functional Diagram

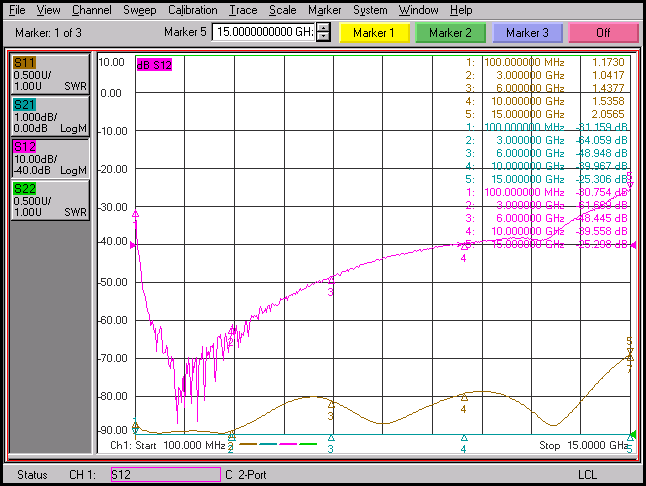

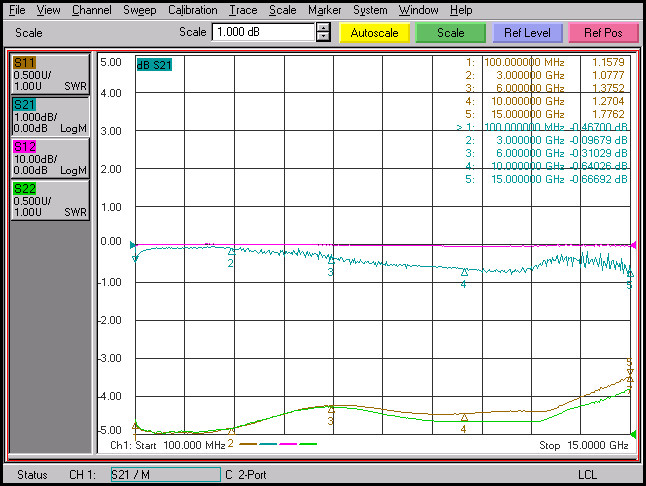

Typical Performance Data: cnctional Diagram tional Diagram
FunctionFunct
ionFunctional Diagram al Diagram al Diagram
Functional Diagram
