Wideband Bias Tees 40KHz-20GHz
LMWBT40K20G is a RF choke that operates from 40KHz to 20 GHz. The RF choke offers 0.8 dB insertion loss and 1.35 VSWR . The RF choke can handle up to +30VDC bias voltage and 500 mA current. The all ports are equipped with SMA female connectors
Features • Frequency range:40KHz-20GHz • Low Insertion Loss • High Voltage • High Current Capacity Application • Test Lab • Sub-assemblies • System Integrations |
Electrical Characteristics
Part Number：LMWBT100M15G
| Frequency(GHz) | 40KHz-20GHz |
| Isolation(dB) | 30dB TYP |
| Insert. Loss(dB) | 0.8dB |
| VSWR | 1.35:1 TYP |
| Voltage(V) | 0-30V |
| Input /Output Connector | SMA |
| DC Connector | SMA |
| Specification | Click to download the specification |
Functional Diagram

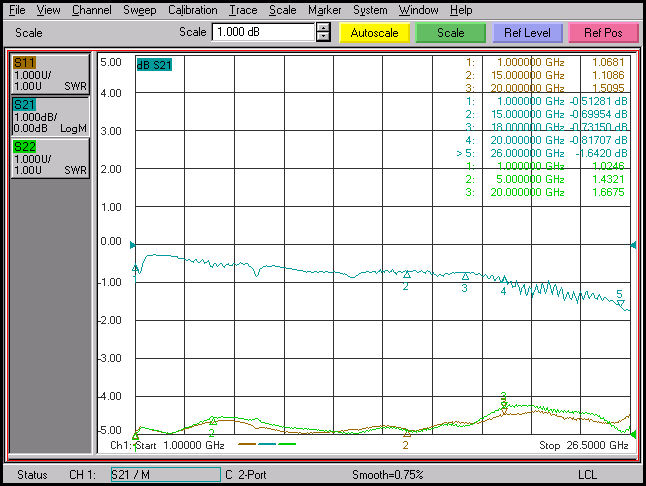

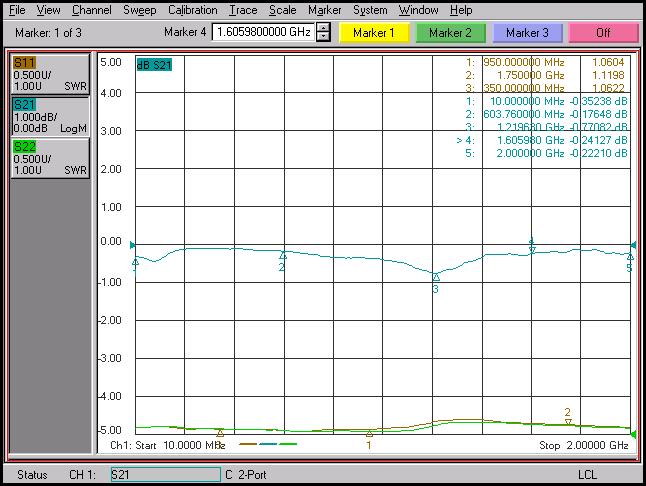

Typical Performance Data: cnctional Diagram tional Diagram
FunctionFunct
ionFunctional Diagram al Diagram al Diagram
Functional Diagram
