4-channel low-frequency Amplifier
2025-11-27
The Frequency band is from DC to 5MHz, The Product has the gain of 20dB and it is a 4-channel low-frequency Amplifier.
Part Number: LMWLDC-5MHz-4CH More products can be found at www.logicmw.com or contact us to customize RF microwave modules
Electrical Characteristics
| Frequency(GHz) | DC~5MHz |
| Gain(dB) | 20dB |
| Channel | 4CH |
| VSWR | 1.3：1 |
| Maximum output voltage(dB) | ±4V |
| Supply Voltage | ±5V |
| Current Consumption | 50mA |
| Port impedance | 50Ω |
| Operation Temp. | -55~+85℃ |
| Input /Output Connector | SMA-K |
| Specification | Click to download the specification |

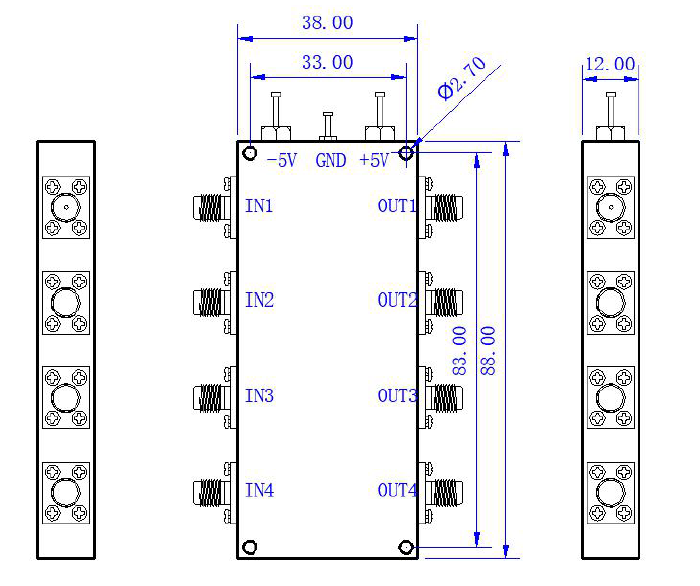

Outline Drawing（mm）
tional Diagra
m tional Diagram
Fun
