Bias Tees 100KHz-3GHz
LMWBT-100K3G is a RF choke that operates from 100 KHz to 3 GHz. The RF choke offers 0.65 dB insertion loss and 1.25 VSWR. The RF choke can handle up to +70VDC bias voltage and 300 mA current. The all ports are equipped with SMA female connectors
Features
• Frequency range:100KHz-3GHz
• Low Insertion Loss
• High Voltage
• High Current Capacity
Application
• Test Lab
• Sub-assemblies
• System Integrations
Electrical Characteristics
Part Number：LMWBT-100K3G
| Frequency(GHz) | 100KHz-3GHz |
| Isolation(dB) | 23dB TYP. |
| Insert. Loss(dB) | 0.65dB Max. |
| VSWR | 1.25:1 |
| Voltage(V) | 0-70V |
| Input /Output Connector | SMA |
| DC Connector | SMA |
| Specification | Click to download the specification |
Functional Diagram

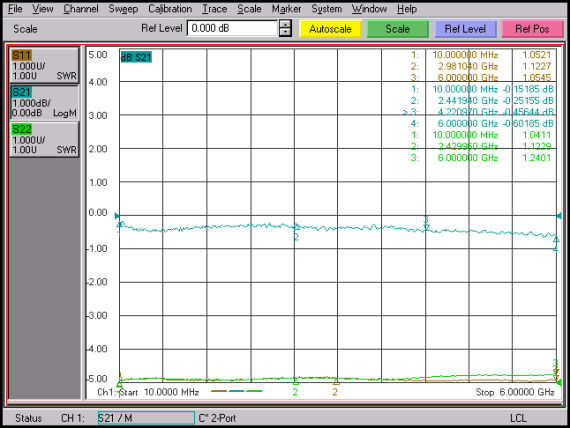

Typical Performance Data:
FuncFunctional Diagram tional Diagram
FunctionFunctionFunctional Diagram al Diagram al Diagram
Function
al Diagram
