| Model Number↕ | No.of Ways ↕ | Freq. Range(dB) ↕ | IL(dB) ↕ | Isolation(dB) ↕ | Amplitude Balance(dB) ↕ | Phase Balance(°) ↕ | VSWR ↕ | Connector ↕ |
|---|---|---|---|---|---|---|---|---|
| LWM2W120190 | 2 | 12～19 | 1.2 | 20 | ±2 | 1.5 | ±0.2 | SMA-F |
| LWM2W20180 | 2 | 2～18 | 1.0 | 16 | ±4 | 1.6 | ±0.3 | SMA-F |
| LWM2W2080 | 2 | 2～8 | 0.5 | 20 | ±2 | 1.3 | ±0.2 | SMA-F |
| LWM2W60180 | 2 | 6～18 | 1.0 | 24 | ±2 | 1.5 | ±0.2 | SMA-F |
| LWM4W20180 | 4 | 2~18 | 3 | 18 | ±0.5 | ±6 | 2 | SMA-F |
| LWM4W2080 | 4 | 2~8 | 1 | 20 | ±0.2 | ±2.5 | 1.5 | SMA-F |
| LWM4W4080 | 4 | 4~8 | 1 | 20 | ±0.2 | ±2 | 1.4 | SMA-F |
| LWM4W60180 | 4 | 6~18 | 1.8 | 16 | ±0.5 | ±3 | 1.6 | SMA-F |
| LWM8W20180 | 8 | 2-18 | 3 | 15 | ±0.5 | ±8 | 1.8 | SMAF |
| LWM8W2080 | 8 | 2～8 | 1.5 | 20 | ±0.2 | ±3 | 1.5 | SMA-F |
| LWM8W60180 | 8 | 6～18 | 3 | 16 | ±0.6 | ±4 | 1.8 | SMA-F |
PD Series

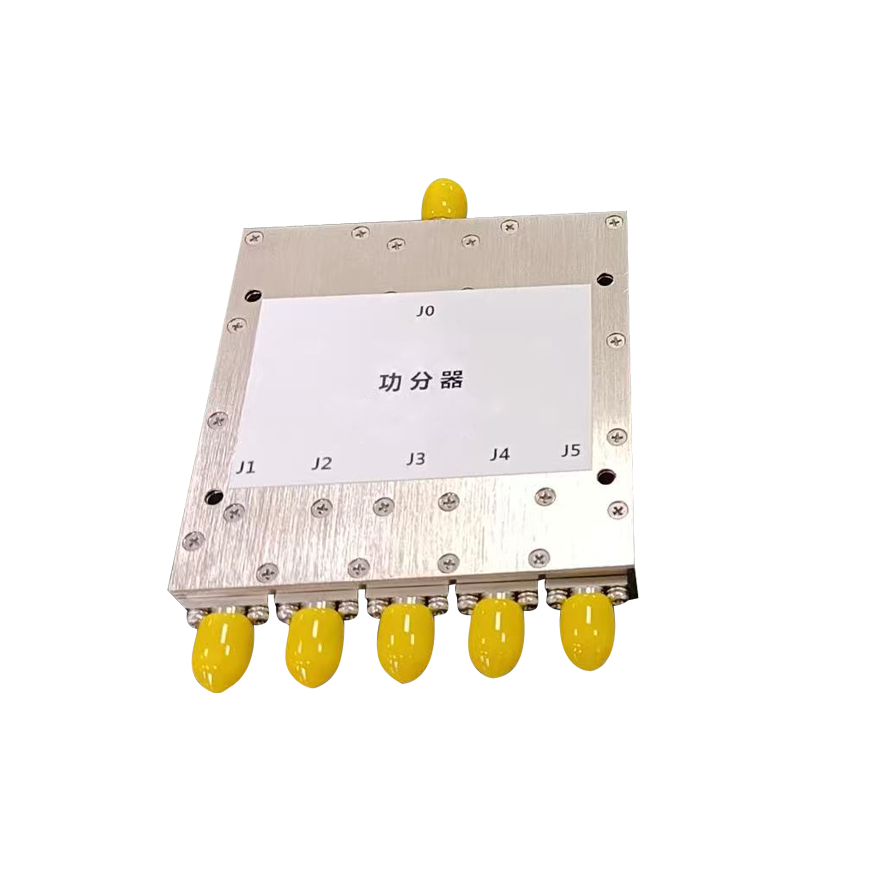

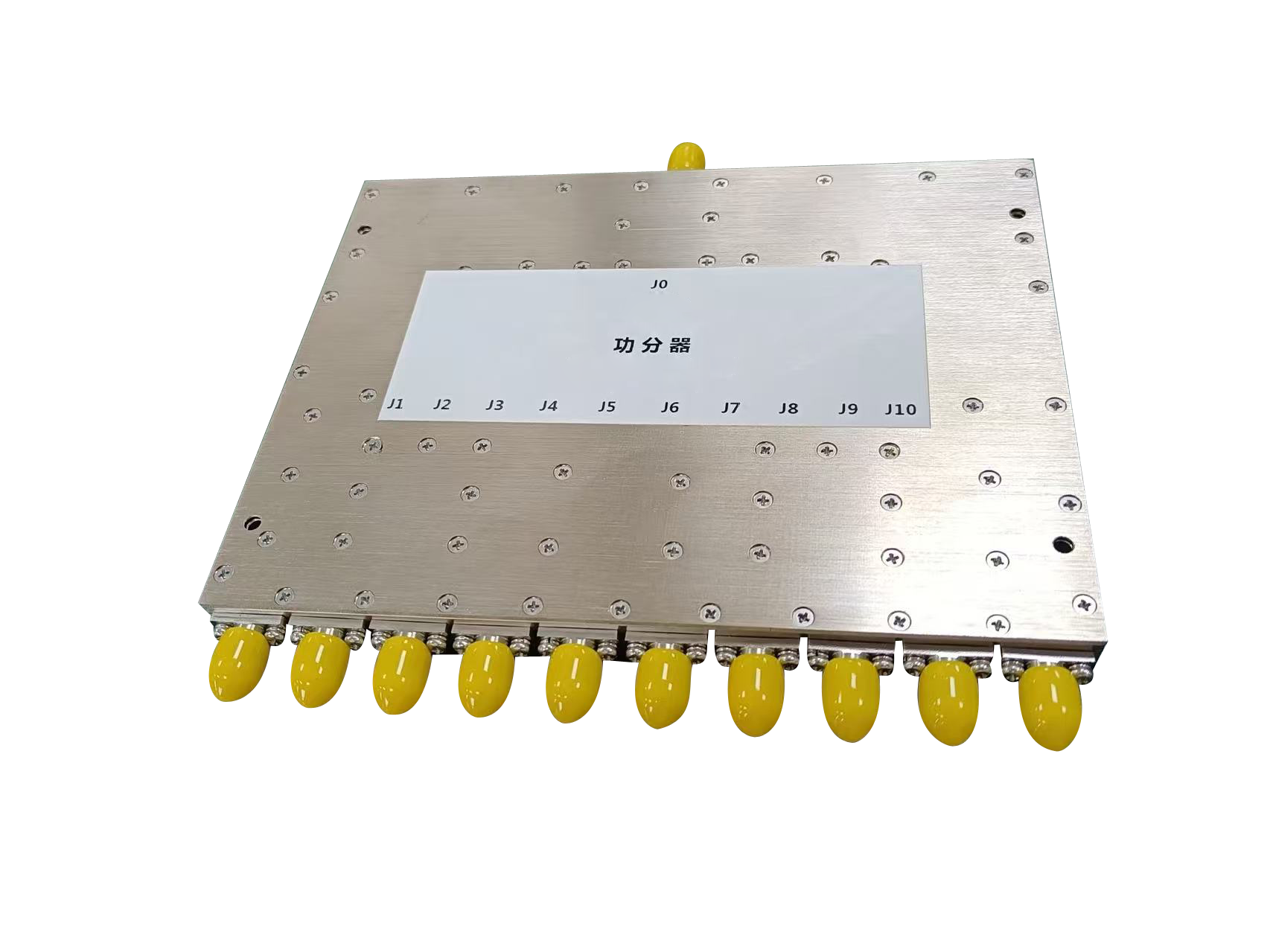

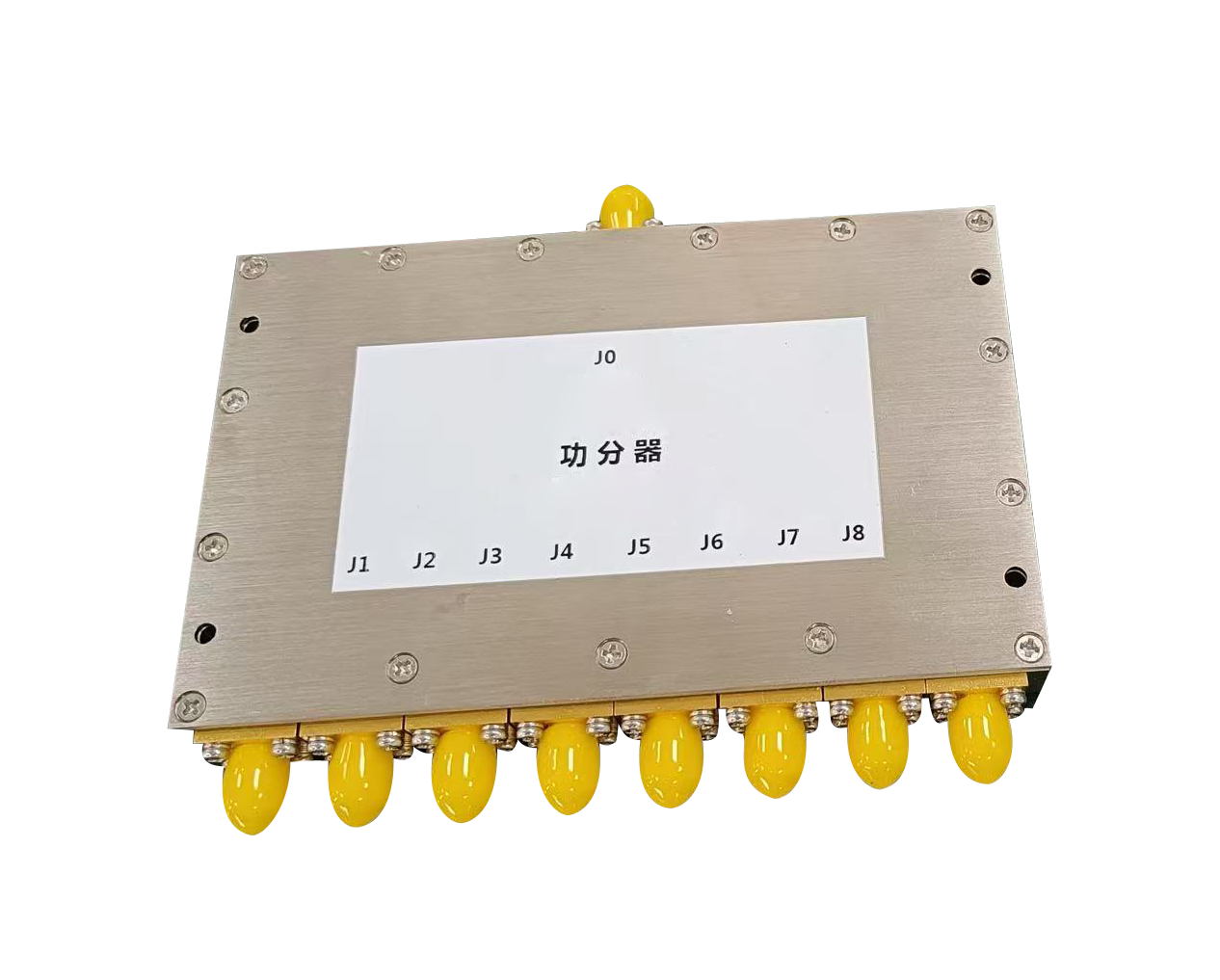

LogicMW-PD Series (Power Dividers): Splits RF power into multiple paths, applicable to phased array antennas, multi-channel transceivers, and test equipment.
